Releveling and Reconditioning

What is releveling? The term is widely used to describe a readjustment of the undercarriage of the mobilehome/manufactured home. In many cases the home is decades old, was initially set-up imperfectly or other attached structures have been added to the home over the years when the home was out of level. Our primary goal is to provide the home with equal distribution of weight-making sure each component is working optimally and in compliance with the original manufacturer's guidelines for weight bearing. Older homes present unique situations because many homeowners have made improvements over the years, possibly when the home was not quite level. Obviously we don't want to create new problems with the roof, windows or plumbing by making aggressive adjustments if that is the case. Additionally, appurtenant structures may have been added when the home was out of level and we don't want to break seals or flashing attachments by re-setting the home.

On older homes, many of the original materials may have deteriorated or the materials may no longer be consistent with industry standards. For instance, original concrete piers may be sitting on untreated wood or non-compliant pads, piers and pads may have settled into the ground causing the screws to be extended beyond the manufacturer's guidelines or water intrusion may have caused the pads to sink into the ground or become deteriorated. In this case, the understructure may need a more comprehensive overhaul-we call this "reconditioning", replacing piers and pads as needed, bringing all components above grade, providing equidistant spacing of the piers and pads and making sure that all screws meet the manufacturer's specifications. In many cases, we have to remove debris, re-install fallen insulation, repair torn vapor barrier, re-attach ducting and raise electrical wiring. All of this is commonly called releveling but we would prefer that the industry term be recalibration and are reconditioning.


Tags:  doublewide foundation mobile home foundation 433A permanent foundation contractors foundation system foundation intalling a manufactured home foundation blocking system mobile homes Permanent Foundation systems for Financing mobile homes Earthquake Bracing Mobile homes Retrofit Foundations on Mobile homes Seismic Retrofit on Mobile home manufactured home foundation manufactured homes foundation mobile home contractor modular housing foundation double wide mobile homes foundation foundation repair manufactured home manufactured home foundation permanent foundations mobile home

Before & After Gallery
Click on the slide!

Before: Old Piers

Pads are covered with terrain (below grade) which eventually leads to premature deterioration of the piers and pads.

Click on the slide!

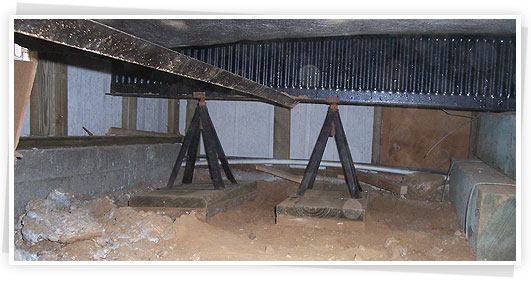

After: New Piers

New Piers and Pads. Pads are now doubled up above grade. This increases the supports load-bearing capacity and ability to distribute the home's weight more effectively.

Click on the slide!

Before: Rusted Pier

Pad is way below grade. You can see the installer literally dug a hole to accommodate the pier rather than just putting a smaller pier in its place. Imagine if there were water intrusion under this home?

Click on the slide!

After: New Pier

Pad is above grade and pier is placed firmly at the center of the pad not allowing more than 2 inches of extension between bolt and beam.

Click on the slide!

Before: New Piers

For whatever reason piers become obstructed over time and are not properly cleared of elements that lead to a premature demise.

Click on the slide!

After

Pier and pad set above grade after terrain was leveled. Now that the terrain is leveled the pier (stanchion) used is also shorter because the pad was brought above grade making the distance between the beam and the ground shorter.

Click on the slide!

Before: Rusted Pier

Pier not on the beam...not even touching.

Click on the slide!

After: New Pier

Pier closely and firmly placed on beam.

Click on the slide!

Before: Cement Piers without pad

Cement Piers have no pad, and are covered with dirt. Screw jack not touching beam and overextended. Although we do not prefer cement piers, we will utilize the existing ones provided that they are not defective (either disintegrating or cracked).

Click on the slide!

After: Cement Piers on sturdy ground

Cement Piers on sturdy ground and placed in center of pad. Screw jack is placed firmly on beam and not overextended. We chose to use this cement pier because it was in good condition and could offer sufficient support to the home.

Click on the slide!

Before: Large hole and uneven terrain

Rusted pier lifting off of the pad. Pad is decaying because it is not the correct pressure treated material. The pressure treated pad must be used in order to maximize the longevity of the pier/pad set, and to minimize water and termite deterioration of the pad.

Click on the slide!

After: Terrain has been leveled and hole filled in

Old pad replaced with new pressure treated pad and also new pier placed directly in center of pad and screw jack firmly touch beam with no overextension.

Click on the slide!

Before: Piers are completely buried

Again, for various and unknown reasons piers are left completely buried. Not having a visual of the pier and pad keeps us from determining and or maintaining the lifetime of the system.

Click on the slide!

After: Even terrain and leveled area for the pad to sit

Proper placement of the pier in the center of the pad.

Click on the slide!

Soil Encroachment

Damp soil in contact with untreated steel is the perfect recipe for rust. Rust eventually leads to rapid and irreversible deterioration.
